产品中心
双金属带锯条
硬质合金带锯条
木工硬质合金带锯条
木工合金框锯

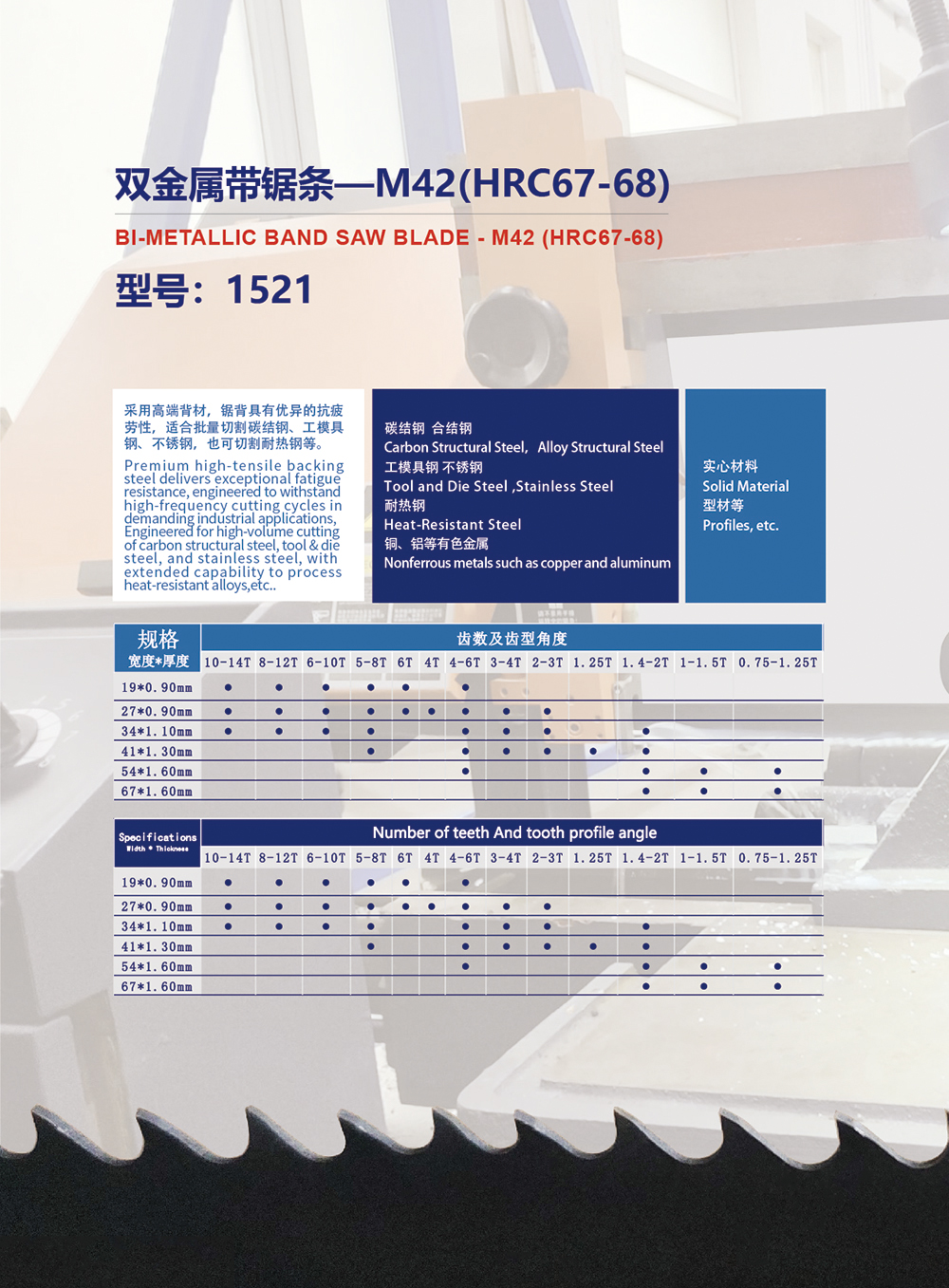

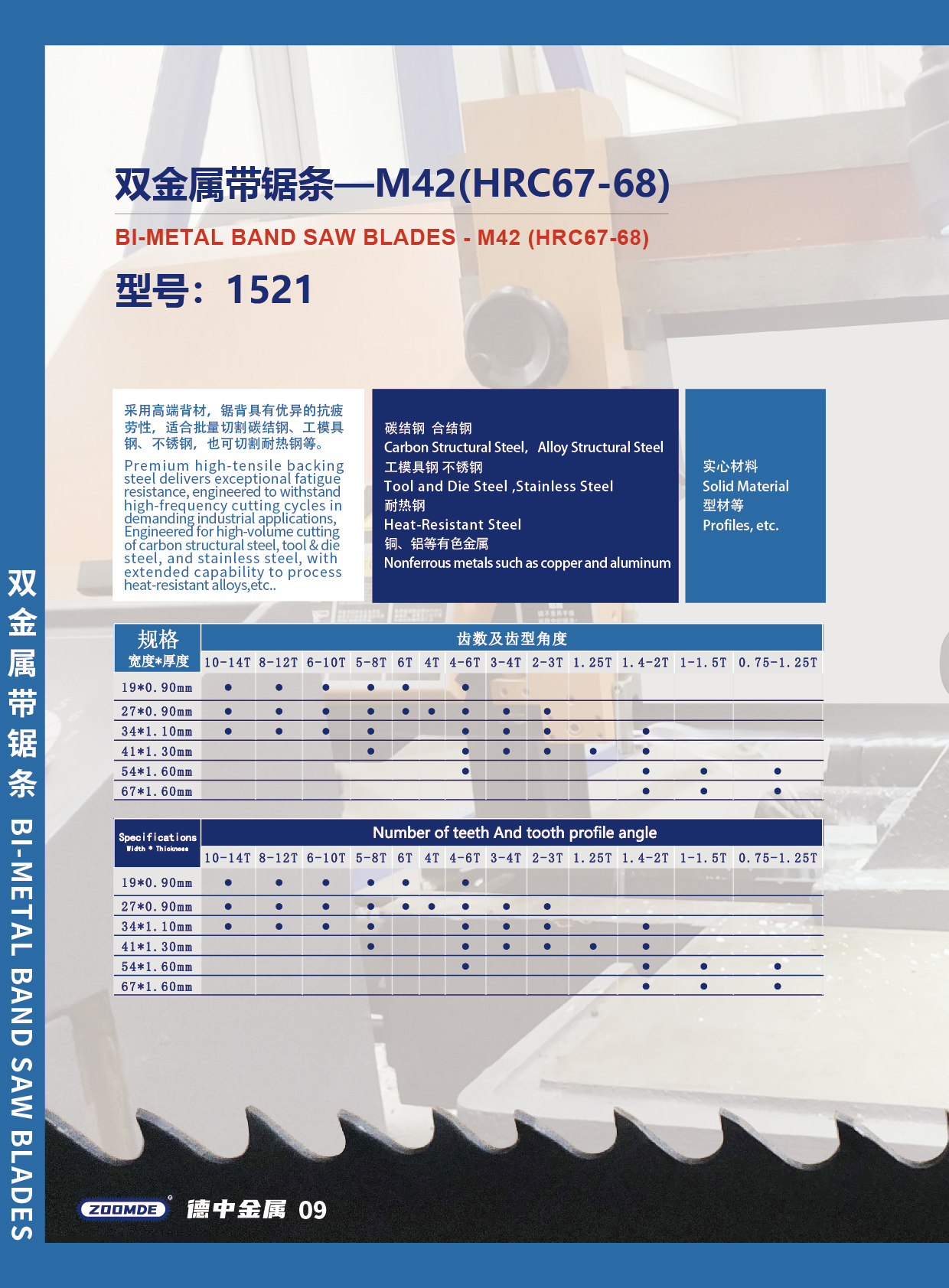

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1521
采用高端背材,锯背具有优异的抗疲劳性,适合批量切割碳结钢、工模具钢、不锈钢,也可切割耐热钢等。
High-end backing material is adopted. Saw back has excellent fatigue resistance, which is suitable for batch cutting of Carbon bonded steel,Tool and mould steel and Stainless steel, also can be used to cut heatresistant steel.
碳结钢
Carbon bonded steel
工模具钢
Tool and mould steel
不锈钢
Stainless steel
耐热钢
Heat resisting steel
铜、铝等有色金属
Nonferrous metals such as copperand aluminum
批量切割实心材料
Bulk cut Solid material
型材等
Profiles, etc
齿数及齿型角度    Number of teeth And tooth profile angle
10-14T
8-12T
6-10T
5-8T
6T
4T
4-6T
3-4T
2-3T
1.25T
1.4-2T
1-1.5T
0.75-1.25T
19*0.90mm
·
·
·
·
·
·
27*0.90mm
·
·
·
·
·
·
·
·
·
34*1.10mm
·
·
·
·
·
·
·
·
41*1.30mm
·
·
·
·
·
·
54*1.60mm
·
·
·
·
67*1.60mm
·
·
·

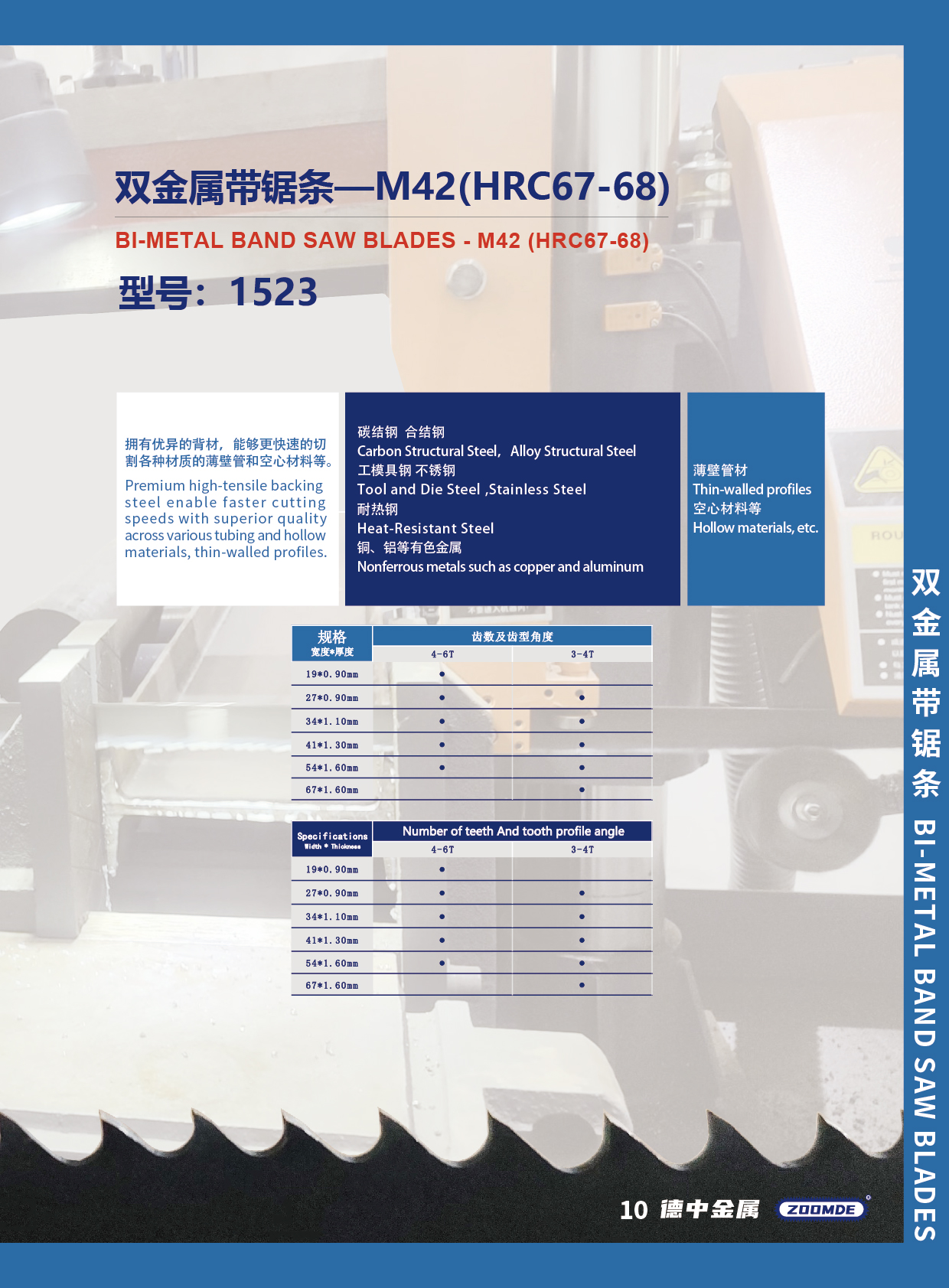

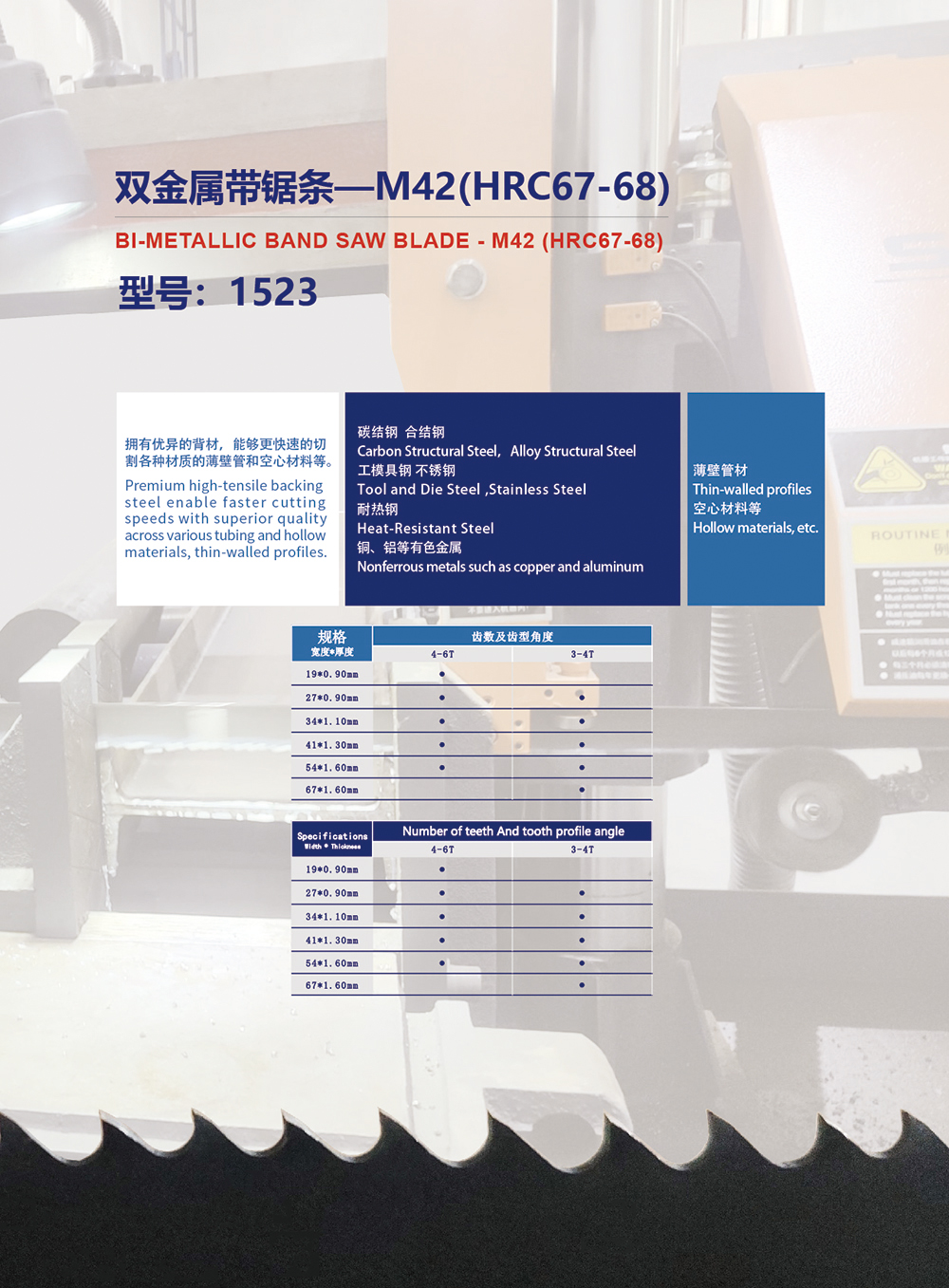

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1523
拥有优异的背材,能够更快速的切割各种材质的薄壁管和空心材料等。
With excellent backing material,it can quickly cut all kinds of thinwall pipes and hollow materials.
碳结钢
Carbon bonded steel
工模具钢
Tool and mould steel
不锈钢
Stainless steel
耐热钢
Heat resisting steel
铜、铝等有色金属
Nonferrous metals such as copperand aluminum
实心材料
Solid material
型材等
Profiles, etc
齿数及齿型角度    Number of teeth And tooth profile angle
4-6T
3-4T
19*0.90mm
·
27*0.90mm
·
·
34*1.10mm
·
·
41*1.30mm
·
·
54*1.60mm
·
·
67*1.60mm
·

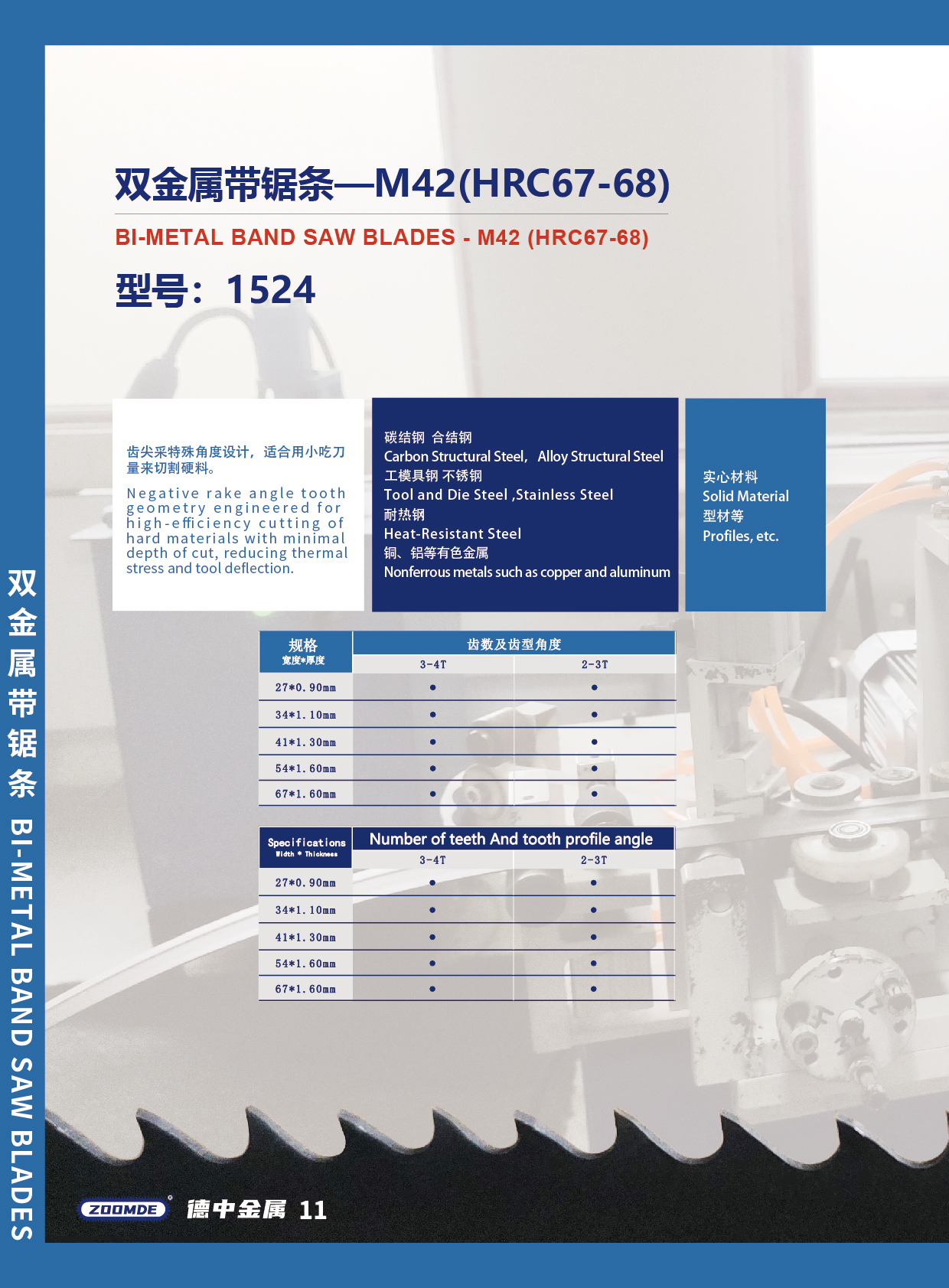

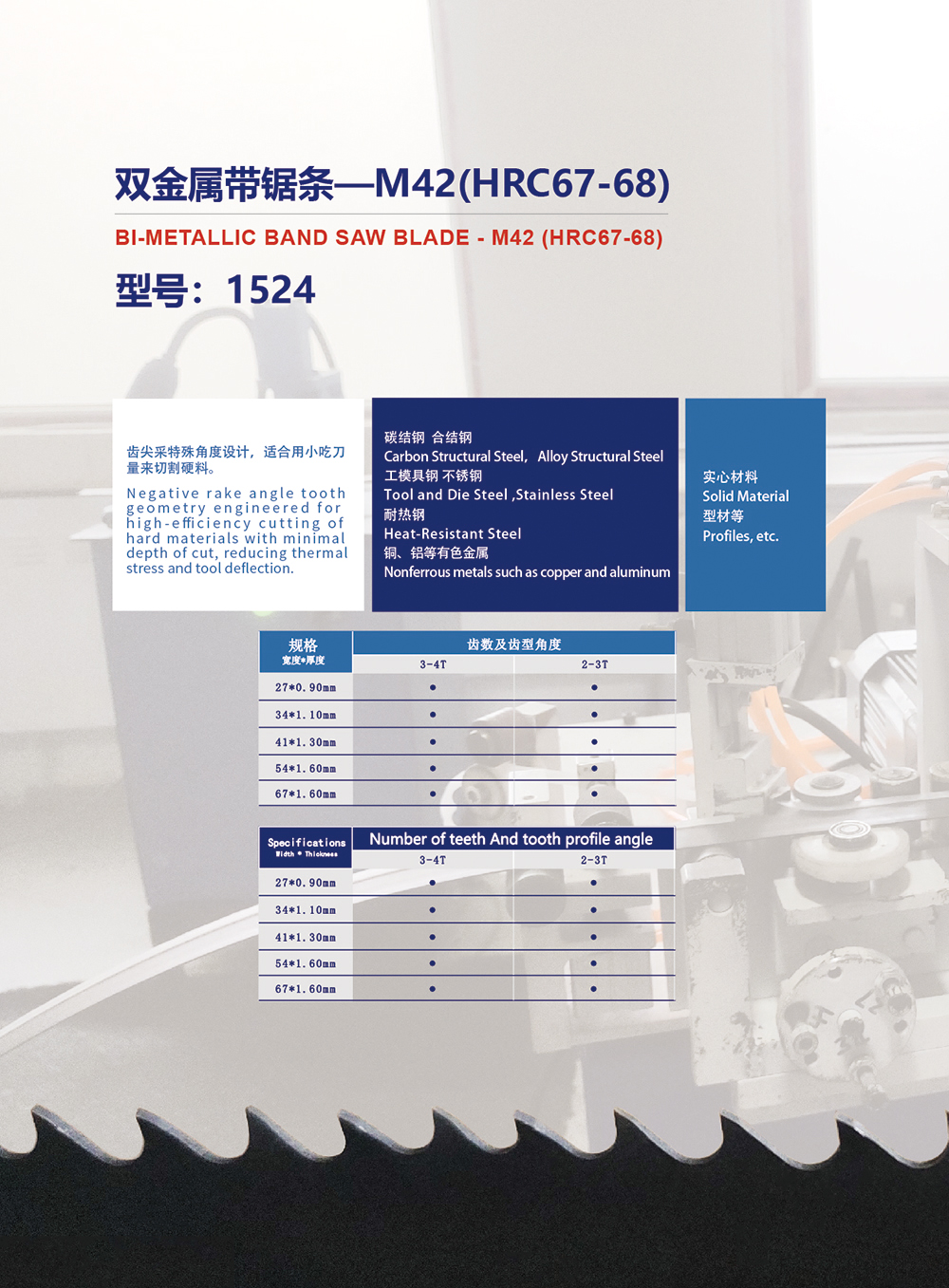

双金属带锯条一M42(HRC67-68)
BIMETALLIC BAND SAW BLADE-M42(HRC67-68)
型号/Model:1524
齿尖采特殊角度设计,配合优异的背材,适合用小吃刀量来切割硬料。
Tip of tooth special measures Angle design, with excellent backing material, suitable for cutting hard materials with a snack knife.
碳结钢
Carbon bonded steel
工模具钢
Tool and mould steel
不锈钢
Stainless steel
耐热钢
Heat resisting steel
铜、铝等有色金属
Nonferrous metals such as copperand aluminum
实心材料
Solid material
型材等
Profiles,etc
齿数及齿型角度    Number of teeth And tooth profile angle
3-4T
2-3T
27*0.90mm
·
·
34*1.10mm
·
·
41*1.30mm
·
·
54*1.60mm
·
·
67*1.60mm
·
·
